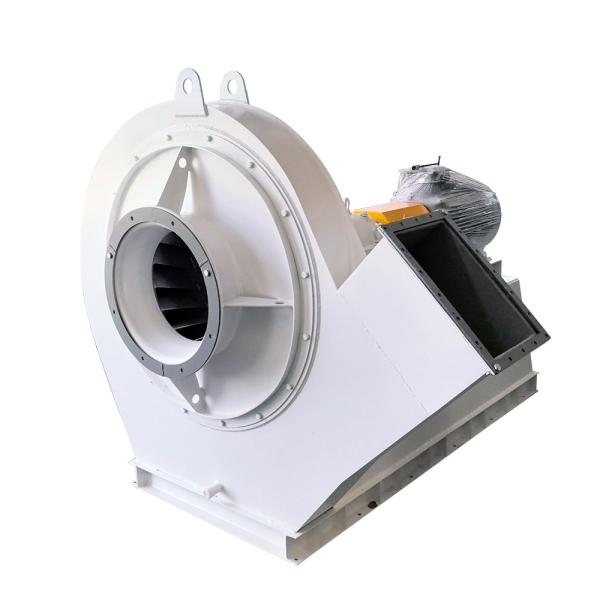

45kW High Pressure Low Noise Centrifugal Blower Fan for Industrial Use

Brand Name : SIMO BLOWER

Model Number : 9-08

Certification : CE/ISO9001/ISO45001

Place of Origin : China

MOQ : ≥1 set

Price : $500-1,0000.00/set

Payment Terms : L/C, T/T

Supply Ability : 300sets 30days

Delivery Time : 35days (To be negotiated)

Packaging Details : 1.Standard export wooden case 2.steel pallet waterproof cloth package 3.other package to meet your requirement

Product Name : 45kW High Pressure Low Noise Centrifugal Blower Fan for Industrial Use

Pressure : Stainless Steel High Pressure Explosionproof

Blade Material : Carbon Steel or Stainless Steel

Category : Simo Blower 9-08

Voltage : 380V/415V/440V/660V/3kv/6kv

Impeller Diameter : 710-1600mm

Electric Current Type : AC

Motor : Chinese Famous Brand, ABB, Siemens, Weg Etc

Bearing Cooling : Air Cooling Or Circulating Water Cooling

Drive : Direct Driven, Coupling Driven, Belt Driven

Bearing Type : Rolling Bearing

Warranty : 1year

After-Sales Service Provided : Field Installation, Commissioning and Training

Customized Support : ODM OEM OBM

HS Code : 4107960701

Contact Now

45kW High Pressure Low Noise Centrifugal Blower Fan for Industrial Use

45kW High Pressure Low Noise Centrifugal Blower Fan for Industrial Use

This 45kW high-pressure centrifugal blower fan is specifically designed for industrial applications, featuring high efficiency and low noise operation. The fan delivers powerful airflow, ideal for high-pressure environments, ensuring stable system performance. Its energy-efficient design helps reduce power consumption while maintaining low noise levels, making it suitable for industries where quiet operation is essential. Built with high-quality materials and precise engineering, this fan operates stably in harsh conditions and is widely used in ventilation, airflow transport, and exhaust gas systems.

Product Features

1.This series of fans is a new type of high efficiency industrial fan in the field of small flow and medium pressure.
2.The current collector and impeller front plate are processed by advanced spinning process and ensure precision.
3. V-belt driving and coupling driving type fan are equipped with integral bearing box, which has good lubrication, stable operation and long bearing life.
4. Equipped with tapered sleeve embedded pulley, easy to assemble and disassemble.
5. The current collector is equipped with a mounting flange to facilitate the use of the pipeline by the customer.

Product Parameters

The following datas are only part of performance of our product.
If you can't find the datas you need, pls send us your performance requirements
we will provide you customized design service.
45kW High Pressure Low Noise Centrifugal Blower Fan for Industrial Use
45kW High Pressure Low Noise Centrifugal Blower Fan for Industrial Use
Performance Pressure range 3215-27349 Pa
Air flow range 1049-33030 m3/h
Impeller diameter 400-3500 mm
Speed ≤3000 rpm
Material Blower fan casing Q235, Q345, stainless steel Design as special
Blower fan shaft 45# steel, Q304, SS304,SS316L
Blower fan impeller Q304, 12Cr1Mov,15Crmov, 15MnV
Medium 10---120 Dustiness<80 g/m3 incombustible
Motor Siemens, ABB, WN, SIMO, LA IP 54,55,56 3 phase
Optional
components		 System base frame, Protective screening,
Silencer, Inlet & Outlet pipeline compensator,
Inlet & Outlet flange, Damper, Electric actuator,
Shock isolator, Diaphragm coupling, Fluid coupling,
Motor rain cover, Temperature sensor, Vibrating sensor,
Soft starter, Inverter, Special Electrical Motor,
System monitoring Instrument,
Lube system, Overhead lube tank.
Application
45kW High Pressure Low Noise Centrifugal Blower Fan for Industrial Use
Cooperating customers

45kW High Pressure Low Noise Centrifugal Blower Fan for Industrial Use

Our Advantages
45kW High Pressure Low Noise Centrifugal Blower Fan for Industrial Use45kW High Pressure Low Noise Centrifugal Blower Fan for Industrial Use45kW High Pressure Low Noise Centrifugal Blower Fan for Industrial Use45kW High Pressure Low Noise Centrifugal Blower Fan for Industrial Use
Packaging & Shipping
45kW High Pressure Low Noise Centrifugal Blower Fan for Industrial Use
FAQ

45kW High Pressure Low Noise Centrifugal Blower Fan for Industrial UseContact us to get a quote
